PORTABLE

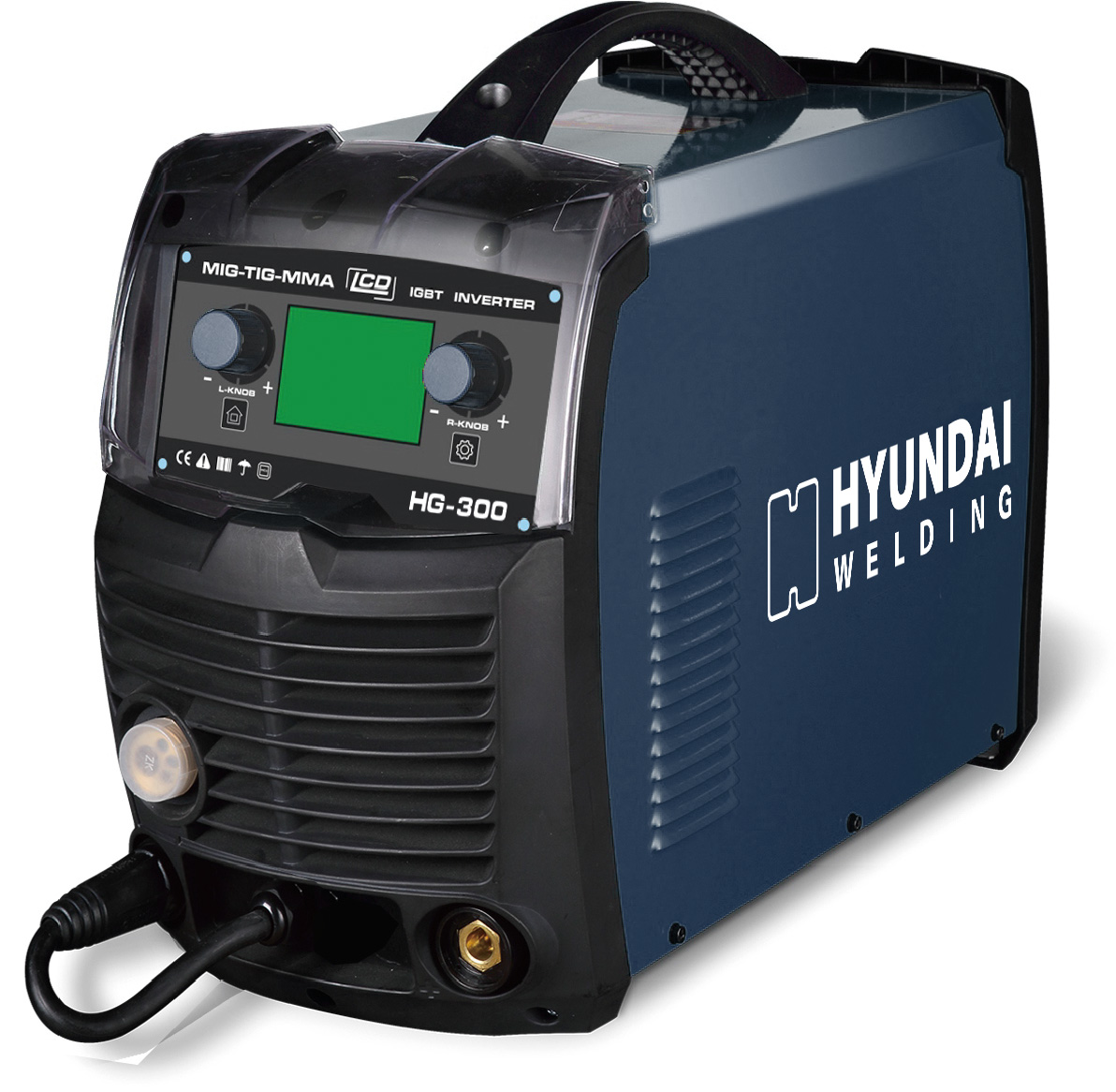

HG300

MIG HG300

  • Features ① 3 in 1 multi-process welding machine
    ② High performance high efficiency welding machine
    ③ Hot start, arc force, inductance individually adjustable
    ④ Easy to check welding current and voltage by applying digital display
    ⑤ Stylish design
  • Configuration
    and Option
    Package composition
    ① Earth cable, clamp (2.5M, 300A, 35SQ)
    ② Electrode holder (600A, 2M, 35SQ)
    ③ Mig Torch (3M, 36KD)
    ④ V-groove rollers (1.0-1.2)
    ⑤ Contact tips (0.8,0.9,1.0)
    ⑥ Power source
  • Specifications Rated input
    3PHASE 230V , 380V (±10%)

    Rated output
    300A

    Welding way
    MIG/MAG, TIG, MMA

    Weight
    22KG

    Dimension
    615 x 355 x 500 (mm)

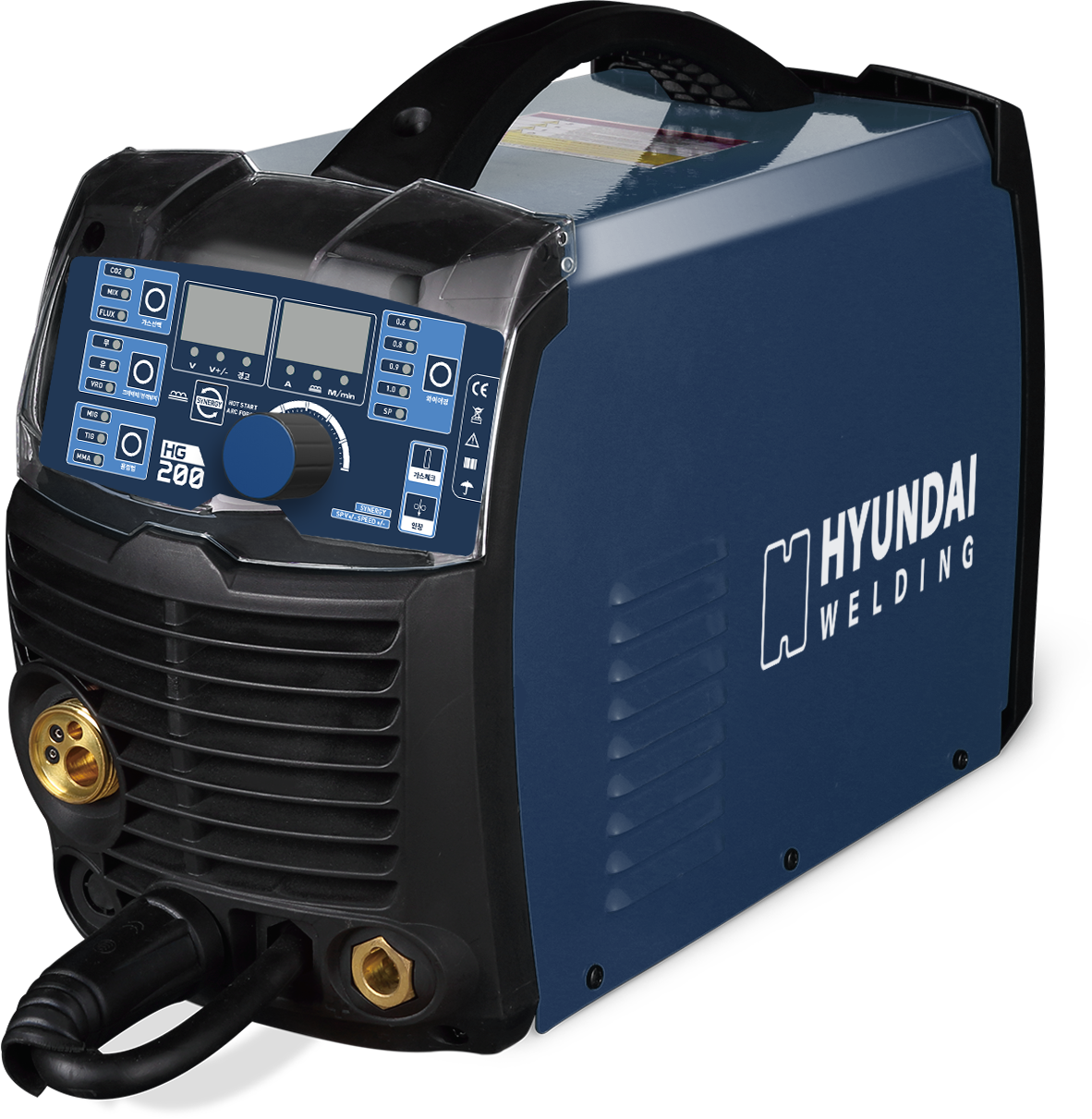

HG200

MIG HG200

  • Features ① 3 in 1 multi-process welding machine
    ② Inverter welding machine without gas
    ③ Reduced by more than 20% compared to the weight of commercial products
    ④ Aluminum, stainless welding possible
    ⑤ Reinforced durability with IGBT protection circuit
  • Configuration
    and Option
    Package composition
    ① Earth cable, clamp (1.5M, 300A, 25SQ)
    ② Electrode holder (2M, 200A 25SQ)
    ③ Mig Torch (4M 200A, 15AK)
    ④ Power source

    Option
    ①Aluminum package (Teflon liner, U roller, Tip)
  • Specifications Rated input
    1PHASE 230V (±10%)

    Rated output
    200A

    Welding way
    MIG/MAG, TIG, MMA

    Weight
    8.5KG

    Dimension
    450 x 180 x 290 (mm)
