HiQ-AMP(Alternative Marine Power System) is a modular, containerized shore power connection system which provides a secured electrical power supply from the local grid to vessel.
Hyundai Welding provides,
Easy to operate, safety secured AMP system to ship-owner.
Feature:
Simple and Modular shore power connection system,
meets IEC/ISO/IEEE 80005-1 requirements and global standards
satisfies Class requirements: DNV/ABS/LR/KR/BV and others
provides black-out free switching and customized solutions
Hyundai Welding provides,
Easy to operate, safety secured AMP system to ship-owner.
Feature:
Simple and Modular shore power connection system,
meets IEC/ISO/IEEE 80005-1 requirements and global standards
satisfies Class requirements: DNV/ABS/LR/KR/BV and others
provides black-out free switching and customized solutions
Benefits of HiQ-AMP
- Safety First Solution: Black-out free
- Turnkey solution from design to commissioning and after service through our global service network

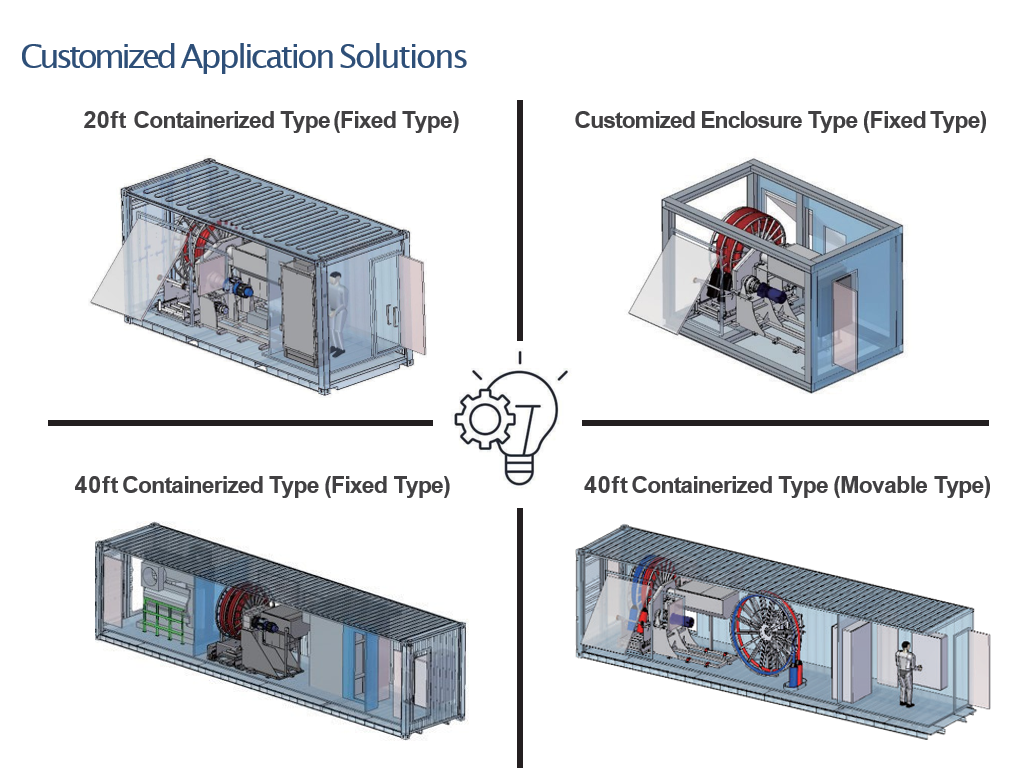

- Customized AMP Solutions (Container Type or Enclosure Type)
- Long time proven technology and certified key components
- Cost effectiveness
- Long experience in marine industry; Ship's Classification Requirements
- Strong and reliable business partner over 45 years
HiQ-AMP can be installed with following specifications:
- Safety First Solution: Black-out free
- Turnkey solution from design to commissioning and after service through our global service network
- Customized AMP Solutions (Container Type or Enclosure Type)
- Long time proven technology and certified key components
- Cost effectiveness
- Long experience in marine industry; Ship's Classification Requirements
- Strong and reliable business partner over 45 years
HiQ-AMP can be installed with following specifications:
| Items | Specification | Remark |
Module size |
20ft/ 40ft container |
Can be customized |
Integration |
Fixed / Mobile |
|
Shipside Transformer |
As required |
for LV |
Reel Cable length [m] |
55 |
Can be customized |
Shore side power |
AC 6.6 kV / AC 11 kV |
|
Shipside power |
AC 6.6 kV / AC 450 V |
60 Hz / 50 Hz with frequency converter |
Power rating |
6 MW / 8 MW |
Can be customized |
Ship Power connection |
Bolted / Plugged |
|
Automatic tension control |
Applied |
|
Automatic power recovery |
As required |
Automatically return to onboard power |
