TIG

ALPAH lll 500M

ALPHA(DC SATURABLE) ALPAH lll 500M

  • Features ① Staturable TIG welding machine for shipbuilding, plant and construction site
    ② Able to control wide welding current range
    ③ Excellent weldability\ with torch length extension by powerful high frequency arc start
    ④ Proven stable durability by exporting products in large quantities
    ⑤ Remoter controller for welding condition can be set from a long distance
  • Configuration
    and Option
    Package composition
    ① Power source
    ② Remote controller
    ③ Torch
    ④ Earth cable
    ⑤ Ar regulator
    ⑥ Gas hose
    ⑦ Input cable
  • Specifications Rated input
    3PHASE, 220V/380V/440V(±10%)

    Rated output
    500A, 40V

    Welding way
    TIG, MMA

    Weight
    234KG

    Dimension
    480 x 800 x 960 (mm)

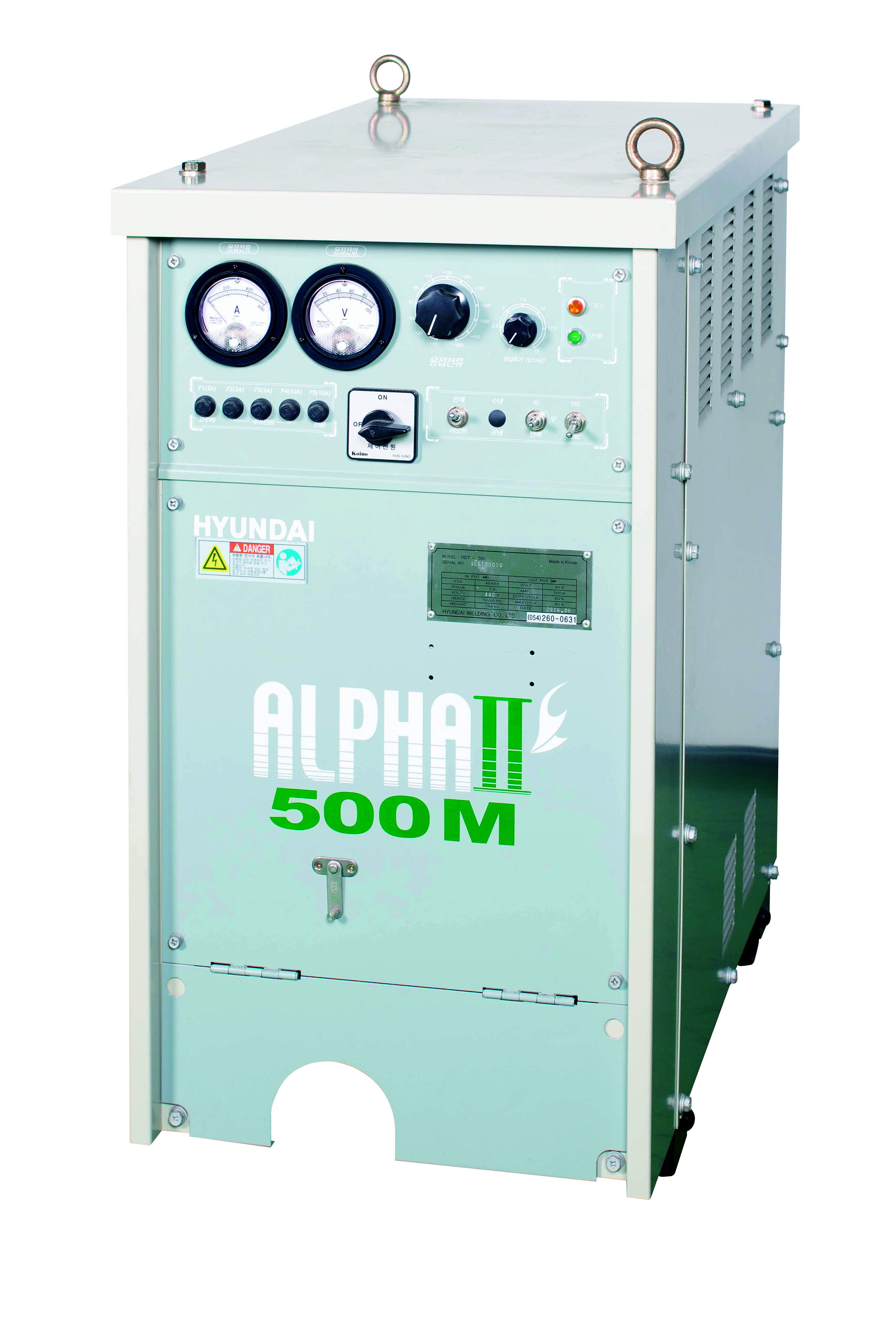

ALPHA ll 500M

ALPHA(DC SATURABLE) ALPHA ll 500M

  • Features ① Staturable TIG welding machine for shipbuilding, plant and construction site
    ② Able to control wide welding current range
    ③ Excellent weldability\ with torch length extension by powerful high frequency arc start
    ④ Proven stable durability by exporting products in large quantities
    ⑤ Remoter controller for welding condition can be set from a long distance
  • Configuration
    and Option
    Package composition
    ① Power source
    ② Remote controller
    ③ Torch
    ④ Earth cable
    ⑤ Ar regulator
    ⑥ Gas hose
    ⑦ Input cable
  • Specifications Rated input
    3PHASE, 220V/380V/440V(±10%)

    Rated output
    500A, 40V

    Welding way
    TIG, MMA

    Weight
    234KG

    Dimension
    480 x 800 x 960 (mm)
